Firemaster Plus V
Since 1990 we develop professional radio controlled firing systems
This is not another improvement with respect to any previus version!
During its long Evolution (25 years) the System reached now its no-return point since the pesent requirements of huge and complex multi-media shows call for a firing System of unusual performance with functions and capabilities never seed before. This produced a real REVOLUTION in the design philosophy of the Firemaster System.
The FIREMASTER V SYSTEM just retains high quality and reliability standard of its previus models, but both hardware and firmware changed deeply in order to create a real new product perfectly aligned with the actual needs of the modern Pyrotechnics.
Modes initial investment, while getting rid of miles of cables
Strongly reduced cost per line
The new FIREMASTER V with its distributed line arrangements, allows to bear a modest initial investment with a very reduced number of modules (e.g.: one TX6000, one RX6000 Unit and 4 EXTENSIONS EXT6K). The possibility to ADD LINES just adding the relatively inexpensive Extension modules, allow to EXPAND the System, while REDUCING the cost-per-line.
Up to 480 lines per receiver means more than for millions line ready for you
Most initial investment, while getting rid of miles of cables
Understand our totally cable-free system
Receiver sensivity improved with dual-conversion system
New frames able to welcome the EXT6K units, with 90+ degrees orientation
A guinnes world record and tens of thousands of shows all over the world.
Firemaster Plus V

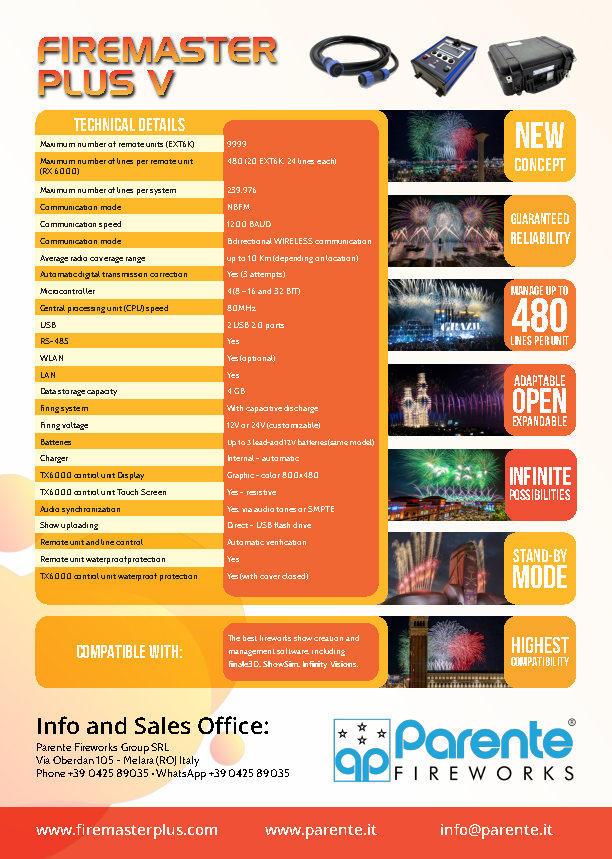

Technical Details
MAX REMOTE UNITS | 9999 |
MAX LINES PER RX UNITS | 480 (20 EXTENSIONS, 24 LINES EACH) |
MAX LINES PER SYSTEM | 4,799,520 |
COMMUNICATION MODE | NBFM |
COMMUNICATION SPEED | 1299 BAUND |
COMMUNICATION MODE | WIRELESS BI-DIRECTIONAL |
MEAN COVERANGE RANGE | 1 TO 10 KM |
ERROR CORRECTION | YES (3 ATTEMPTS) |
MICROCONTROLLERS | 4 (8-16 AND 32 BIT) |
MAIN CPU CLOCK SPEED | 80MHz |
USB | 2 PORT USB 2.0 |
RS-485 | YES |
WLAN | YES (OPTION) |
LAN | YES |
DATA STORAGE | 4GBYTES |
DINAMIC LINES CONFIGURATION | YES |
FIRING TIME PROGRAMMABLE | YES |
FIRING MODE | CAPACITIVE DISCHARGE |
FIRING VOLTAGE | 12V OR 24V (SELECTABLE) |
BATTERIES | 3 LEAD-ACID 12V (SAME MODEL) |
CHARGER | INTERNAL - AUTOMATIC |
TX MAIN UNIT DISPLAY | GRAPHIC - COLOR 800X480 |
TOUCH SCREEN | YES - RESISTIVE TYPE |
MUSIC SYNC | YES AUDIO TONE or SMPTE |
PROGRAM LOADING | DIRECT - USB PEN DRIVE |
LINES AND EXTENSIONS | AUTOMATIC VERIFY |
RX WATER PROTECTION | YES |
EXTENSION WATER PROTECTION | YES |
TX WATER PROTECTION | YES (COVER CLOSED) |
COST-PER LINE | EXCELLENT |
Firemaster Show Design
A professional software for the management of pyromusical shows.
A real revolution need new, powerful weapons. That’s why are testing a completely new software that will perfecly suit this need of the new Firemaster Plus 5 and will follow the same path of high usability and tremendous time saving.
